ASUS ROG Strix B650-A Gaming WiFi

CPU Support

• Socket: AM5

• Compatible with: AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors

---

Chipset

• AMD B650

---

Memory

• 4 x DIMM slots, max capacity 192GB DDR5

• Supported Speeds: DDR5 7600+(OC) down to 4800 (Non-OC)

• Supports ECC & Non-ECC, un-buffered memory

• Dual Channel Architecture

• AMD EXPO™ profile support

• ASUS OptiMem II technology

---

Graphics Output

• 1 x DisplayPort 1.4 (up to 8K@60Hz)

• 1 x HDMI® 2.1 (up to 4K@60Hz)

---

Expansion Slots

With Ryzen 9000 & 7000 Series:

• 1 x PCIe 4.0 x16 slot

With Ryzen 8000 Series:

• 1 x PCIe 4.0 x16 (supports x8/x4 mode)

Via B650 Chipset:

• 1 x PCIe 4.0 x16 slot (x4 mode, shared with M.2_3)

• 2 x PCIe 4.0 x1 slots

---

Storage

• 3 x M.2 Slots:

  • M.2_1: PCIe 5.0 x4 (9000/7000 Series)

  • M.2_2: PCIe 4.0 x4

  • M.2_3: PCIe 4.0 x4 (shared with PCIe slot)

• 4 x SATA 6Gb/s Ports

• RAID Support: NVMe & SATA RAID 0/1/10

---

Networking

• Intel® 2.5Gb Ethernet with ASUS LANGuard

• Wi-Fi 6E (2x2) – Supports 2.4GHz/5GHz/6GHz

• Bluetooth v5.2

Wi-Fi 6E support depends on OS (Windows 11+) and country regulations.

---

USB Ports

Rear I/O (Total 9 Ports):

• 1 x USB 3.2 Gen 2x2 Type-C®

• 4 x USB 3.2 Gen 2 (3 x Type-A, 1 x Type-C®)

• 4 x USB 2.0 Type-A

Front Panel (Total 7 Ports):

• 1 x USB 3.2 Gen 2 Type-C® connector

• 1 x USB 3.2 Gen 1 header (2 ports)

• 2 x USB 2.0 headers (4 ports)

---

Audio

• ROG SupremeFX 7.1 HD Audio (ALC4080)

  • 120 dB SNR playback / 113 dB SNR recording

  • 32-bit / 384 kHz support

  • Savitech SV3H712 AMP, premium capacitors, and shielding

Rear Line-out does not support spatial audio. Use front panel for spatial features.

---

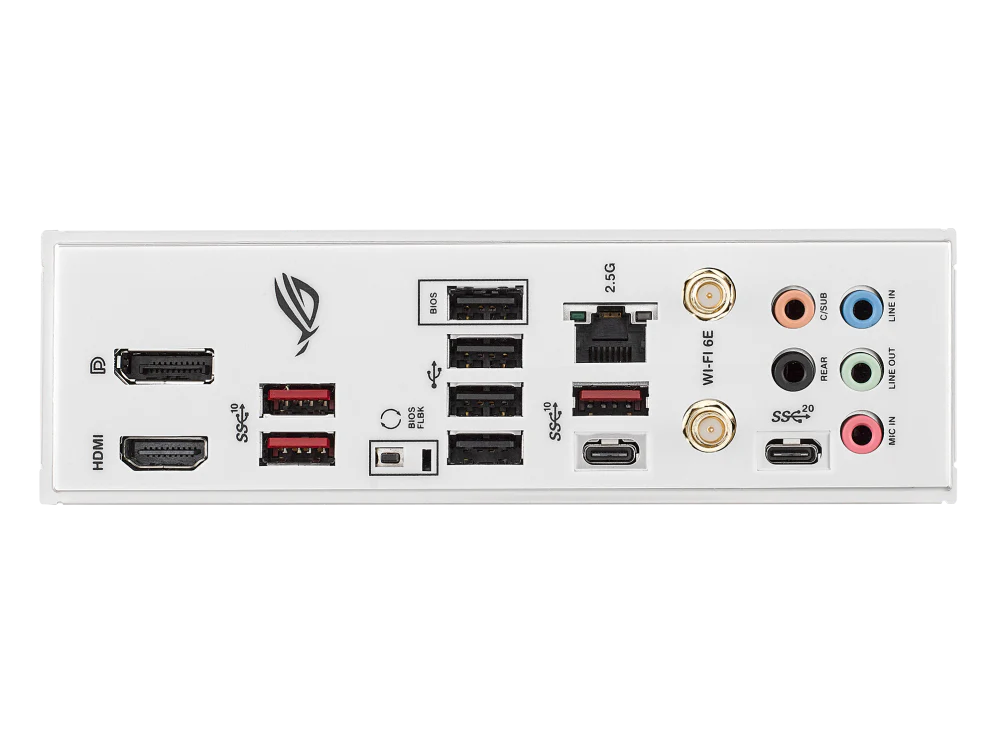

Back Panel I/O

• 1 x USB 3.2 Gen 2x2 Type-C®

• 4 x USB 3.2 Gen 2 (3 x Type-A + 1 x Type-C®)

• 4 x USB 2.0

• 1 x DisplayPort

• 1 x HDMI®

• 1 x Intel® 2.5Gb LAN

• 1 x Wi-Fi Module

• 5 x Audio jacks

• 1 x BIOS FlashBack™ Button

---

Internal I/O Connectors

• Cooling:

  • 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fans (all 4-pin)

• Power:

  • 1 x 24-pin ATX

  • 1 x 8-pin +12V

  • 1 x 4-pin +12V

• Misc:

  • 3 x Addressable Gen 2 RGB headers

  • 1 x AURA RGB header

  • Clear CMOS, Thermal Sensor, COM_DEBUG, CPU Over Voltage jumper

  • Front panel audio, S/PDIF Out, Thunderbolt™ header

  • System panel header with chassis intrusion

---

Special Features

• ASUS Q-Design: M.2 Q-Latch, Q-LED, Q-Slot, Q-DIMM

• ASUS Thermal Solution: VRM & M.2 heatsinks

• ASUS EZ DIY: Pre-mounted I/O shield, BIOS FlashBack™, ProCool, SafeSlot, SafeDIMM

• AURA Sync RGB: Full lighting customization

---

Software Bundle

• ROG Software: GameFirst VI, Sonic Studio III, DTS® Sound Unbound, ROG CPU-Z

• ASUS Software: Armoury Crate, AI Suite 3, Fan Xpert 4, MyASUS, PC Cleaner

• Extras: WinRAR, AIDA64 Extreme (60-day trial)

---

BIOS

• 256 Mb UEFI AMI BIOS

• EZ Flash 3, CrashFree BIOS 3, UEFI EZ Mode

---

Accessories

• 2 x SATA cables

• 1 x Thermal pad (M.2)

• 2 x M.2 rubber kits

• 1 x ROG keychain

• 1 x ROG thank you card & stickers

• 1 x Wi-Fi antenna

• 1 x Q-Latch kit

• 1 x User guide

• Cable ties

---

Operating System Support

• Windows® 10 64-bit / Windows® 11 64-bit

---

Form Factor

• ATX (30.5 cm x 24.4 cm)
